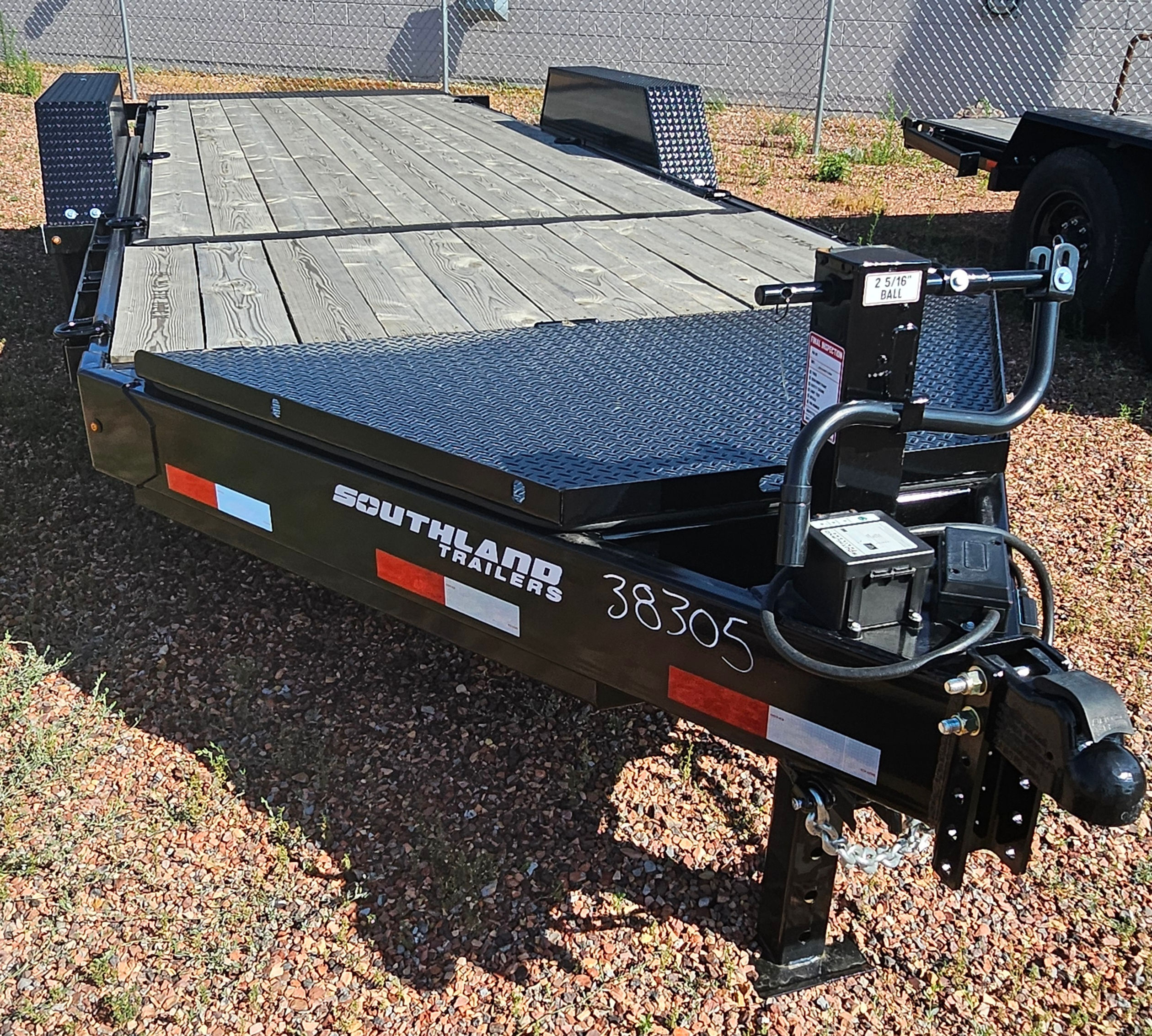

16 FT HEAVY DUTY TILT DECK

The Southland LBAT8-416 TLT is a heavy-duty, commercial-grade split-tilt equipment trailer designed to safely load and haul heavy machinery like skid steers, mini excavators, and tractors. It features a robust 16-foot tilting deck and a 4-foot stationary front deck for maximum versatility.

Specifications & Dimensions

• GVWR (Gross Vehicle Weight Rating): ~17,461 lbs (7,920 kg)

• Empty Weight: ~3,650 lbs

• Payload Capacity: ~13,800 lbs

• Overall Length / Width: 26' 10" overall length / 8' 6" overall width

• Deck Length: 20' Total (4' Stationary / 16' Tilt)

• Deck Width: 82" between fenders

•


Standard Features & Build Quality

• Axles & Brakes: Tandem 8,000 lb axles equipped with electric brakes and multi-leaf slipper spring suspension.

• Frame: 8" x 2" HSS structural tubing frame and tongue with 3" I-beam crossmembers (80 KSI).

• Tilt Mechanism: Hydraulically damped cylinder with a lock-out valve for smooth, controlled tilting without manual ramps.

• Tires: ST235/85R16 F-range radial tires.

• Hitch: Bumper-pull style with an adjustable 2-5/16" Demco coupler and a 12,000 lb side-wind jack.

• Decking: Heavy-duty fir plank decking complete with stake pockets, a full-length rub rail, and D-rings for securing cargo
